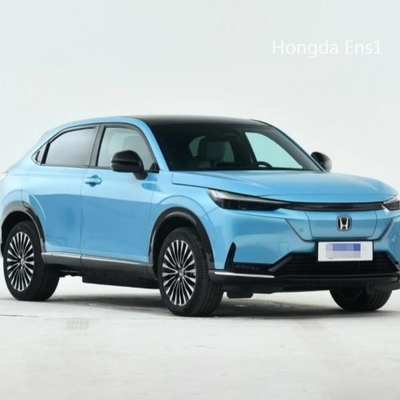

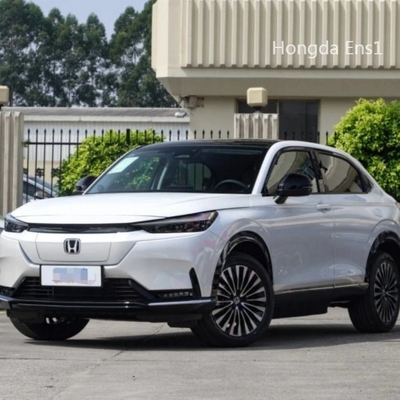

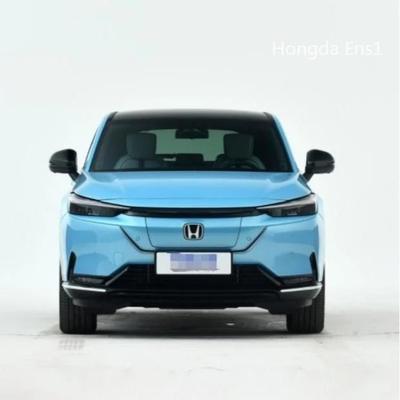

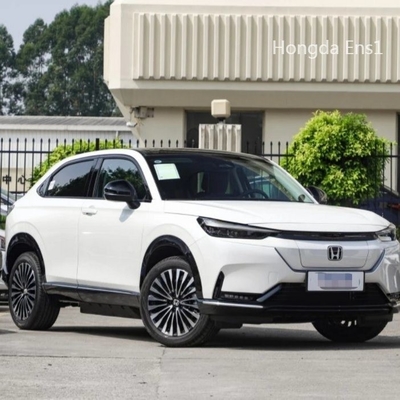

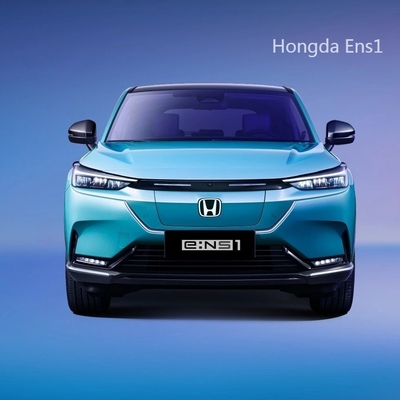

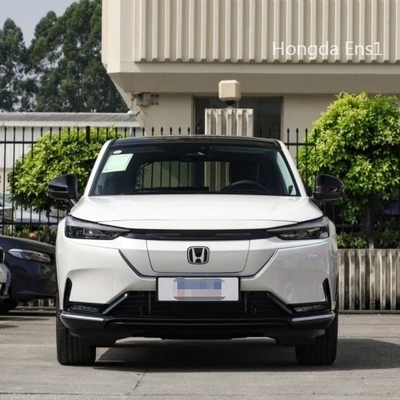

Hon Da 4 Wheel High Speed Electric Car Ens1 5 Seats Passenger Electric Vehicle 2022



Edition	eXing Edition	eChi Edition	eDong Edition	eJing Edition
Vehicle parameters
Long × width × height (mm)	4390x1790x1560	4390x1790x1560	4390x1790x1560	4390x1790x1560
Wheelbase(mm)	2610	2610	2610	2610
Wheel base (front) (mm)	1545	1535	1535	1535
Wheel base (rear) (mm)	1550	1540	1540	1540
Minimum turning radius (M)	11.4	11.4	11.4	11.4
Tire specifications	215/60 R17 96H	225/50 R18 95V	225/50 R18 95V	225/50 R18 95V
Complete quality (KG)	1647	1684	1679	1692
Maximum speed (Km/h)	150	150	150	150
Power system
Motor type	Permanent magnet synchronous motor	Permanent magnet synchronous motor	Permanent magnet synchronous motor	Permanent magnet synchronous motor
Motor maximum power (KW)	134	134	150	150
Peak torque (N.M)	310	310	310	310
Battery Type	Ternary lithium battery	Ternary lithium battery	Ternary lithium battery	Ternary lithium battery
Battery dustproof and waterproof level	IP67	IP67	IP67/IPX9K	IP67/IPX9K
Battery temperature control method	Intelligent liquid cooling/low temperature heating management system	Intelligent liquid cooling/low temperature heating management system	Intelligent liquid cooling/low temperature heating management system	Intelligent liquid cooling/low temperature heating management system
Battery capacity (KWH)	53.6	53.6	68.8	68.8
Battery energy density (Wh/kg)	141	141	183	183
Power consumption 100 kilometers (KWH/100km)	13.6	13.6	13.8	13.8
Communication at normal temperature (SOC: 5%~ 100%, H)	About 9h	About 9h	About 9.5h	About 9.5h
DC fast charging time (SOC: 30%~ 80%, min)	About 40min	About 40min	About 40min	About 40min
External power supply time (SOC:100%~5%@2.2kW)	-	-	-	20 consecutive hours
CLTC Range (Km)	420	420	510	510
System structure
Gearbox system	Single gear	Single gear	Single gear	Single gear
Suspension System (Front)	McPherson independent suspension	McPherson independent suspension	McPherson independent suspension	McPherson independent suspension
Suspension System (Rear)	Torsion beam semi-independent suspension	Torsion beam semi-independent suspension	Torsion beam semi-independent suspension	Torsion beam semi-independent suspension
Braking system (Font/Rear)	Front Ventilated Disc/Rear Solid Disc	Front Ventilated Disc/Rear Solid Disc	Front Ventilated Disc/Rear Solid Disc	Front Ventilated Disc/Rear Solid Disc



Detailed Photos
