| Displacement: | 1000-1600cc, 2.0-2.6L | Braking System: | Mechanical |
|---|---|---|---|
| Body Type: | Open | Body Style: | SUV |
| Fuel Type: | Gasoline | Warranty: | 1 Year |
| After-sales Service: | Remote Guidance | Model No.: | Tank 500 3.0t |
| Type: | SUV | Door: | 5 |
| Fuel: | Diesel | Energy Type: | Gasoline |
| Manufacturers: | Great Wall Motor | Displacement (Ml): | 1967 |
| Maximum Speed(Km/H): | 170 | Transport Package: | According To The Customer′ S Requirements |
| Specification: | According To The Customer′ S Requirements | Origin: | China |
| HS Code: | 8703234310 | Supply Ability: | 50000unit/Per Month |
| Exterior Color: | Black | Steering: | Left |
| Seats: | 5 | Mgnt Certification: | ISO10012 |
| Gearbox: | Automatic | Drive: | AWD |
| Customization: | Available | Customized Request |

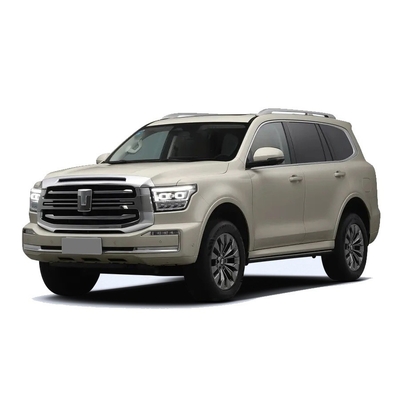

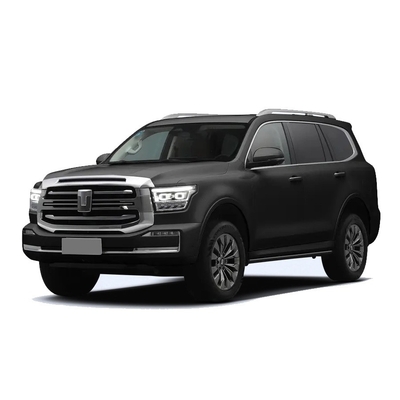

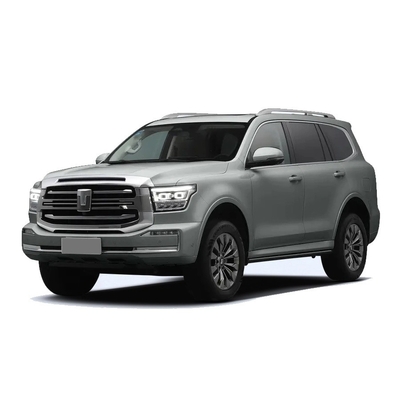

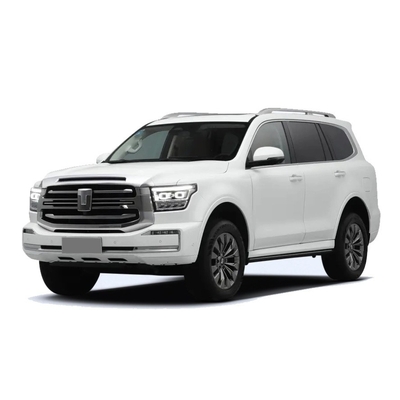

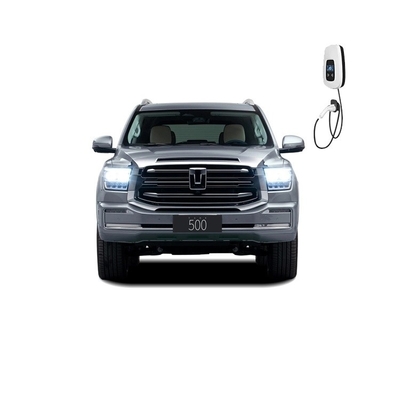

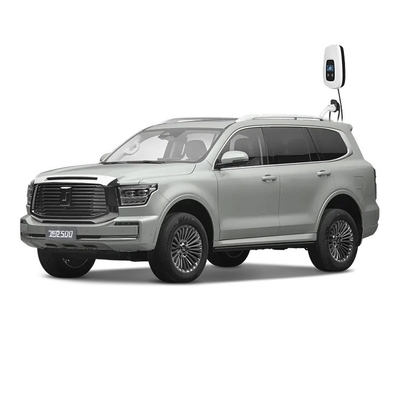

| Tank 500 | 2023 model 3.0T sports version Dengfeng 5 seats | The 2023 3.0T sports version reaches the peak with 7 seats | 2023 model 3.0T sports version with 5 seats | 2023 model 3.0T sports version with 7 seats |
| manufacturers | Great Wall Motor | Great Wall Motor | Great Wall Motor | Great Wall Motor |
| level | Medium and large SUV | Medium and large SUV | Medium and large SUV | Medium and large SUV |
| energy type | gasoline | gasoline | gasoline | gasoline |
| time to market | Mar-23 | Mar-23 | Mar-23 | Mar-23 |
| engine | 3.0T/V6/354 horsepower | 3.0T/V6/354 horsepower | 3.0T/V6/354 horsepower | 3.0T/V6/354 horsepower |
| gearbox | 9-speed automatic | 9-speed automatic | 9-speed automatic | 9-speed automatic |
| Engine maximum power (kW) | 260 | 260 | 260 | 260 |
| Engine maximum torque (N m) | 500 | 500 | 500 | 500 |
| Maximum horsepower (PS) | 354 | 354 | 354 | 354 |
| Maximum torque (N·m) | 500 | 500 | 500 | 500 |
| Motor maximum horsepower (PS) | - | - | - | - |
| body type | 5-door 5-seat SUV | 5-door 7-seat SUV | 5-door 5-seat SUV | 5-door 7-seat SUV |
| Length × width × height (mm) | 5070×1934×1905 | 5070×1934×1905 | 5070×1934×1905 | 5070×1934×1905 |
| Wheelbase (mm) | 2850 | 2850 | 2850 | 2850 |
| Maximum speed(km/h) | 180 | 180 | 180 | 180 |
| Official 0-100km/h acceleration (s) | - | - | - | - |
| WLTC comprehensive fuel consumption (L/100km) | 10.79 | 10.79 | 10.79 | 10.79 |
| Vehicle Warranty | Five years or 150,000 kilometers | Five years or 150,000 kilometers | Five years or 150,000 kilometers | Five years or 150,000 kilometers |
| body | ||||
| body type | SUV | SUV | SUV | SUV |
| Length (mm) | 5070 | 5070 | 5070 | 5070 |
| Width (mm) | 1934 | 1934 | 1934 | 1934 |
| height (mm) | 1905 | 1905 | 1905 | 1905 |
| Wheelbase (mm) | 2850 | 2850 | 2850 | 2850 |
| Front track(mm) | 1635 | 1635 | 1635 | 1635 |
| Rear track(mm) | 1635 | 1635 | 1635 | 1635 |
| Minimum ground clearance (mm) | 224 | 224 | 224 | 224 |
| Vehicle weight(kg) | 2455 | 2535 | 2455 | 2535 |
| Door opening method | side hinged door | side hinged door | side hinged door | side hinged door |
| Number of doors (a) | 5 | 5 | 5 | 5 |
| Number of seats (pieces) | 5 | 7 | 5 | 7 |
| Fuel tank capacity (L) | 80 | 80 | 80 | 80 |
| Trunk volume (L) | - | - | - | - |
| The maximum volume of the trunk (L) | - | - | - | - |
| Maximum full load mass (kg) | 3090 | 3090 | 3090 | 3090 |
| The total mass of quasi-trailer (kg) | 2500 | 2500 | 2500 | 2500 |
| engine | ||||
| engine model | E30Z | E30Z | E30Z | E30Z |
| Displacement (mL) | 2993 | 2993 | 2993 | 2993 |
| Displacement Abbreviation (L) | 3 | 3 | 3 | 3 |
| Intake form | twin turbo | twin turbo | twin turbo | twin turbo |
| engine layout | vertical | vertical | vertical | vertical |
| Maximum horsepower (PS) | 354 | 354 | 354 | 354 |
| Maximum power (kW) | 260 | 260 | 260 | 260 |
| Maximum power speed(rpm) | 6000 | 6000 | 6000 | 6000 |
| Maximum torque (N·m) | 500 | 500 | 500 | 500 |
| Maximum torque speed(rpm) | 1500-4500 | 1500-4500 | 1500-4500 | 1500-4500 |
| Cylinder arrangement | V type | V type | V type | V type |
| Number of cylinders (pieces) | 6 | 6 | 6 | 6 |
| Number of valves per cylinder (pieces) | 4 | 4 | 4 | 4 |
| compression ratio | - | - | - | - |
| Air Supply | DOHC | DOHC | DOHC | DOHC |
| Bore (mm) | - | - | - | - |
| Stroke(mm) | - | - | - | - |
| Engine Specific Technology | 48V+ Inspired motor | 48V+ Inspired motor | 48V+ Inspired motor | 48V+ Inspired motor |
| fuel form | gasoline | gasoline | gasoline | gasoline |
| fuel label | No. 95 (formerly No. 97) | No. 95 (formerly No. 97) | No. 95 (formerly No. 97) | No. 95 (formerly No. 97) |
| Fuel supply method | mixed jet | mixed jet | mixed jet | mixed jet |
| Cylinder head material | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy |
| Cylinder material | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy |
| Emission Standards | Country VI | Country VI | Country VI | Country VI |
| gearbox | ||||
| Abbreviation | 9-speed automatic | 9-speed automatic | 9-speed automatic | 9-speed automatic |
| Number of gears | 9 | 9 | 9 | 9 |
| gearbox type | Manual | Manual | Manual | Manual |
| chassis steering | ||||
| drive mode | Front four-wheel drive | Front four-wheel drive | Front four-wheel drive | Front four-wheel drive |
| four-wheel drive | Timely four-wheel drive | Timely four-wheel drive | Timely four-wheel drive | Timely four-wheel drive |
| Central differential structure | multi-disc clutch | multi-disc clutch | multi-disc clutch | multi-disc clutch |
| Front Suspension Type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
| rear suspension type | Multi-link overall bridge suspension | Multi-link overall bridge suspension | Multi-link overall bridge suspension | Multi-link overall bridge suspension |
| Power Steering Type | electric assist | electric assist | electric assist | electric assist |
| Body structure | non load bearing | non load bearing | non load bearing | non load bearing |
| wheel brake | ||||
| Front Brake Type | Ventilated Disc | Ventilated Disc | Ventilated Disc | Ventilated Disc |
| rear brake type | Ventilated Disc | Ventilated Disc | Ventilated Disc | Ventilated Disc |
| Parking Brake Type | electronic parking | electronic parking | electronic parking | electronic parking |
| Front tire specification | 265/60 R18 | 265/60 R18 | 265/55 R19 | 265/55 R19 |
| rear tire specification | 265/60 R18 | 265/60 R18 | 265/55 R19 | 265/55 R19 |
| Spare tire specifications | Full Size | Full Size | Full Size | Full Size |
| spare tire size | 265/60 R18 | 265/60 R18 | 265/55 R19 | 265/55 R19 |
MAJOR PERFORMANCE
First, our company has a professional production workshop, the production workshop is equipped with advanced high-tech equipment, these equipment are placed in stamping, welding, painting, final assembly four workshops. The main equipment of the first two workshops includes drive machine, levelling machine, flattening machine, plate rolling machine, bending machine, shearing machine, hydraulic press, punching machine, sawing machine, cutting machine, arc welding machine, CO2 protection welding machine, tube bending machine, skin pulling machine, resistance welding machine, ion cutting machine, etc.
We provide customized policies for key clients, offering comprehensive services to meet customers' vehicle needs.
